product detail

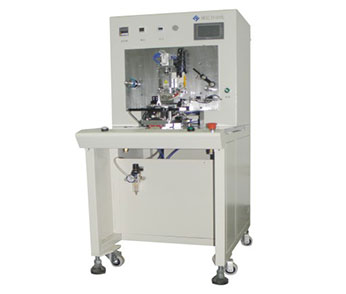

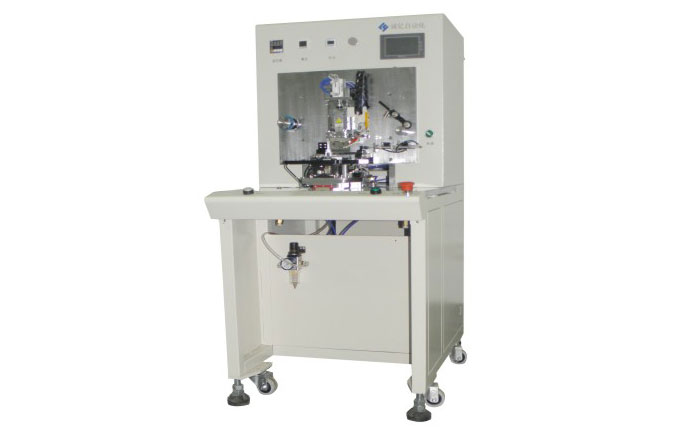

acfaffixing machine cya6
- category:
- semi-automatic equipment
- model:
- acfaffixing machine cya6
- summary:
- acfaffixing machine cya6
details
process parameters:
●applicable to lcd size for a 5-inch stn / cstn / tft-lcds (platform can be expanded to 7 inches);
● panel thickness: 0.3 ~ 1.1mm;
● accuracy affixed pay: x ± 0.2mm, y ± 0.15mm;
● the acf and the substrate of the minimum distance of 0.5mm;
● the acf post pay length: 3 ~ 60mm arbitrarily set;
● post the acf to pay width: 1 ~ 5mm;
● the indenter specifications: 60 * 4mm, according to customer requirements change;
● squeegee stroke: 75mm;
● temperature range: rt-400 ° c;
● heating methods: constant temperature control;
● process cycle: 3.5 seconds. average production can 700pcs / hour or more;
● air consumption: 0.2 cubic meters / minute;
● working pressure 0.4 ~ 0.6mpa;
● power supply: single phase 220v, 50hz, power 200w;
● total weight: 120kg dimensions:l600*w840*h1310(720)。
