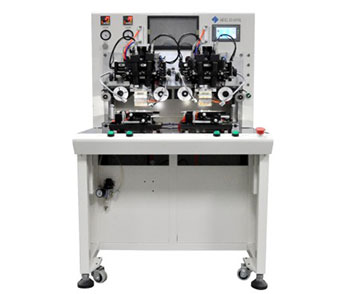

process parameters :

● the tab for a 7-inch / fpc / fog is / fob / the ogs of hot pressing process;

● on the mounted ccd imaging system, the center led auxiliary light source;

● cylinder dual-rail platform access, duplex operation;

● fpc lamination range: 6 ~~ 80mm;

● pitch value 60μm above, the actual accuracy of ± 8μm;

● titanium pressure head specifications: 60 * 1.2mm, according to customer requirements change;

● two head center distance 300mm;

● teflon automatic tape device;

● heating methods: pulse control; temperature range: 50 to 400 ℃;

● 2-4 paragraph temperature control setting temperature curve line;

● automatic temperature calibration, automatic temperature compensation function;

● lg plc control, japan yamatake pulse controller to store the 100 varieties of products;

● process cycle: 30 seconds / slice.

● average production can 200pcs / hour or more;

● working pressure 0.4 to 0.6mpa; air consumption: 0.4 cubic meters / minute;

● power: 220v, 50hz, 3000w;

● total weight: 180kg dimension: l800 * w840 * h1310 (720)
